Tower assembly

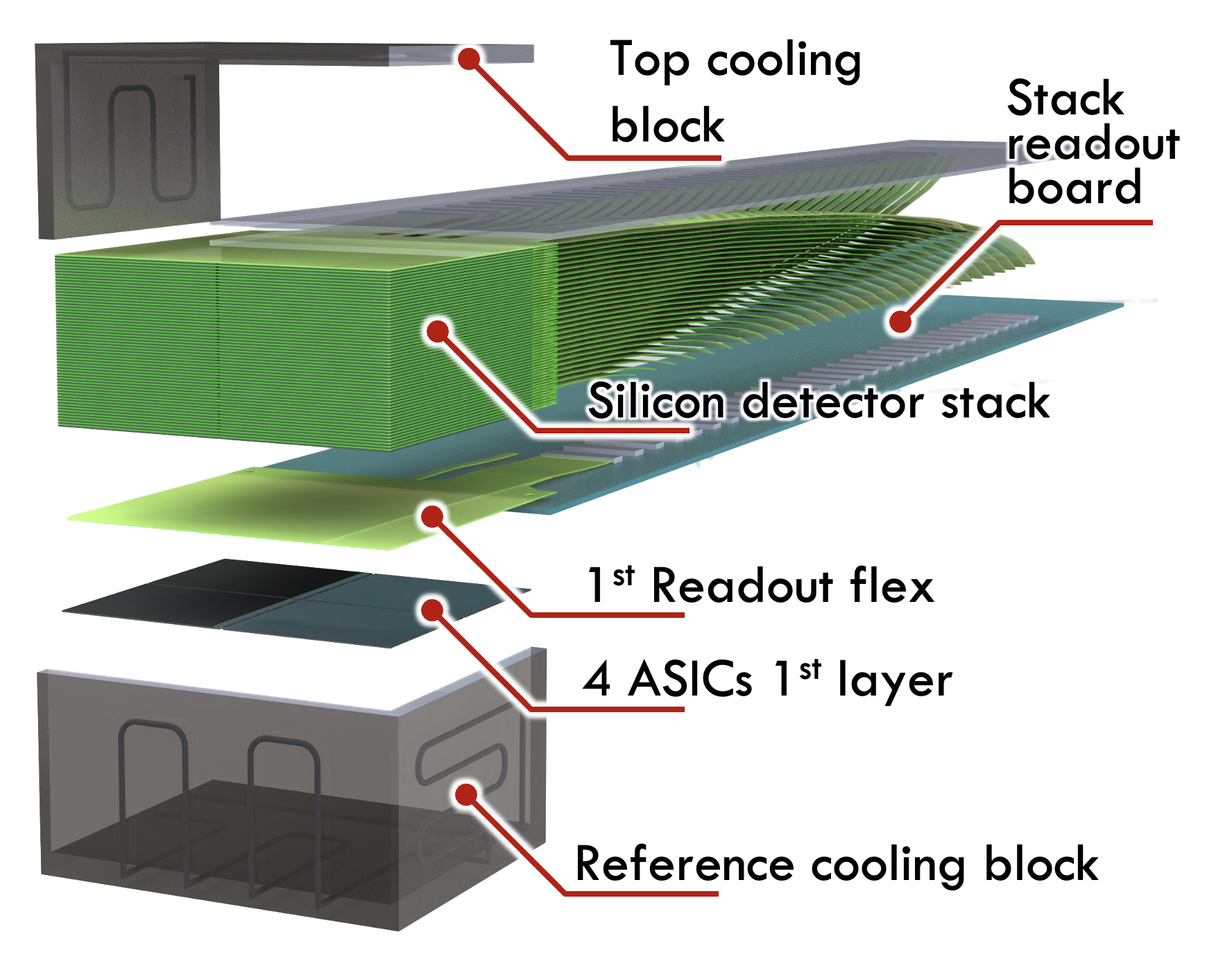

The assembly of the scanner’s tower consists in mounting the previously assembled layer modules into a stack. 60 layers will compose the tower, and such tower will be encapsulated by the cooling housing.

The modules will be stacked using alignment pins to constrain the relative position betwen layers.

Image 4

Specs TODO

  • Will consective modules, or the double-layer modules, have adhesive between? Are the layers replacable if needed?
    • This will add the adhesive thickness (x60) to the total height of the tower
