ASIC size

The size of the final (diced) 100µPET chip, will depend on the dicing technique used.
The chip dimension is 22787.8 µm x 30186 µm.

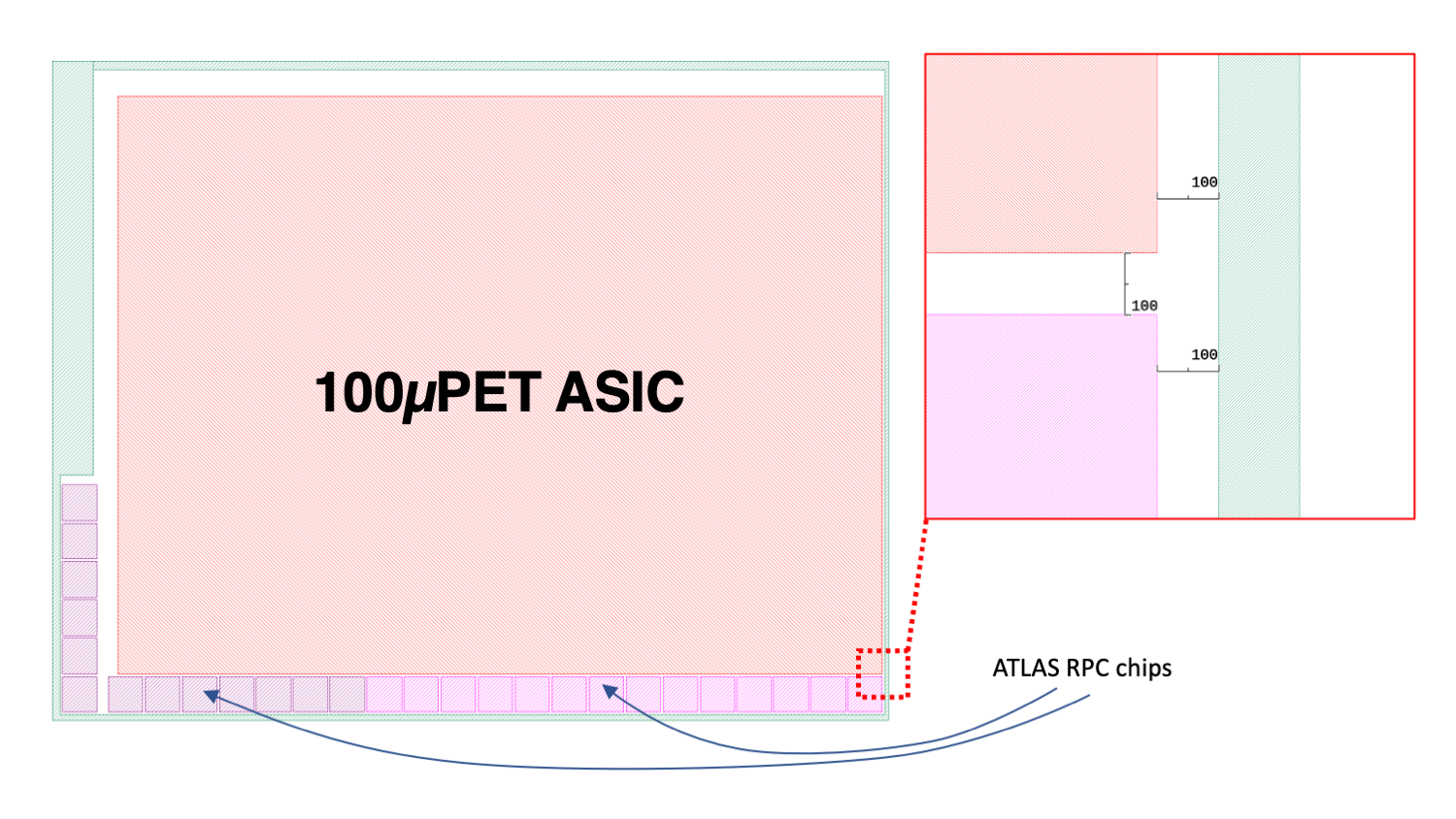

The gap between neighbouring chips in the same reticle is 100 µm (see image below).

The dicing will happen in the midle of such gap, therefore there is extra 50 µm of silicon on each of the four edges of the chip, summing up to 22887.8 µm x 30286 µm.
The final size of the ASIC must consider the dicing street reduction from the chosen dicing technique.

If, for example, 50 µm of silicon are removed during the dicing, the final dimension of the chip to be bonded will be 22837.8 µm x 30236 µm.
When using the Femto second laser WS-Turret MM200-USP (a Carbide CB5 femto laser source with maximum output power of 6W and tunable pulse duration between 290 fs and 20 ps and 1 μm stage resolution), available at FCBG-NMP, the amount of silicon removed was < 50 µm with no visible change (i.e. up to 10 µm) along the diced edge. More is discussed in the assembly prototype section.
